4Pce Woodturning System & Carbide Insert Cutters 70-800 by Rikon, Manufactured in China

Developed for the experienced or novice wood turner, RIKON’s turning system features tungsten carbide cutters that keep their sharp cutting edges longer than typical carbon or high speed steel tools. After hours and hours of use, if a cutter becomes dull, just rotate it to work with another new side of the edge. Changes only take seconds.



Features:-

System includes a 16” long, machined aluminium Handle with an anti-vibration grip that features a unique forward chucking system

• Simply unscrew the knurled chuck collet to insert any of the three supplied shafts with carbide cutters, tighten the chuck collar, and you are ready to turn

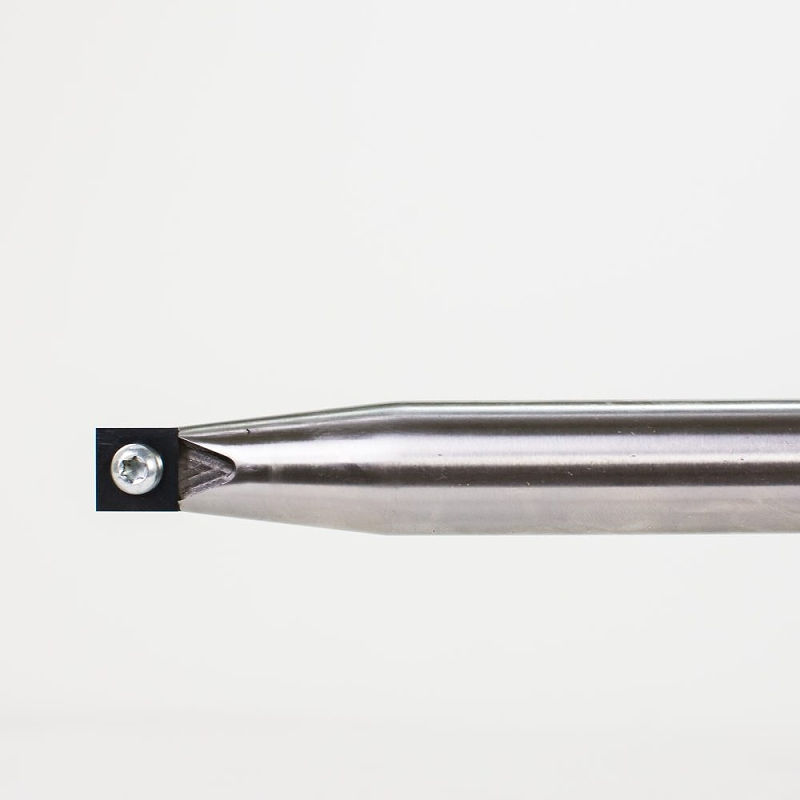

• Three, 8-3/8” steel Shafts are supplied with either a Circle, Square or Diamond shaped carbide Insert Cutter secured to their end with a T20 screw

• The finely machined shafts have bottoms that are milled with a flat, and 2 side bevels for extra stability on the tool rest when turning

• The two side bevel surfaces also give the user extra support when the cutter is shifted to an angled skew position for shear cutting action





Specifications:-

Cutters:

Material: Tungsten Carbide

Shapes: Square, Round, & Diamond

Square Cutter Size: 13mm x 13mm x 3.2mm

Round Cutter Size: 14mm Diameter x 3.2mm

Diamond Cutter Size: 31mm x 13.8mm x 3.2mm (Tip 48°)

Mounting Hole Size: 4.2mm Diameter



Standard Accessories:-

16” Handle

3 Shafts

3 Carbide Cutters

Mounting Screws

Star Wrench

Manual

Storage Box

RIKON 4Pce Woodturning System & Carbide Insert Cutters

SKU: 9803550
$279.00Price
