Woodworker 6090 Metal Milling CNC 1ph 3.2kw

After the success of our 1313 Wood CNC we have decided to introduce a small form heavy duty quality Metal Milling CNC Router to our offering.

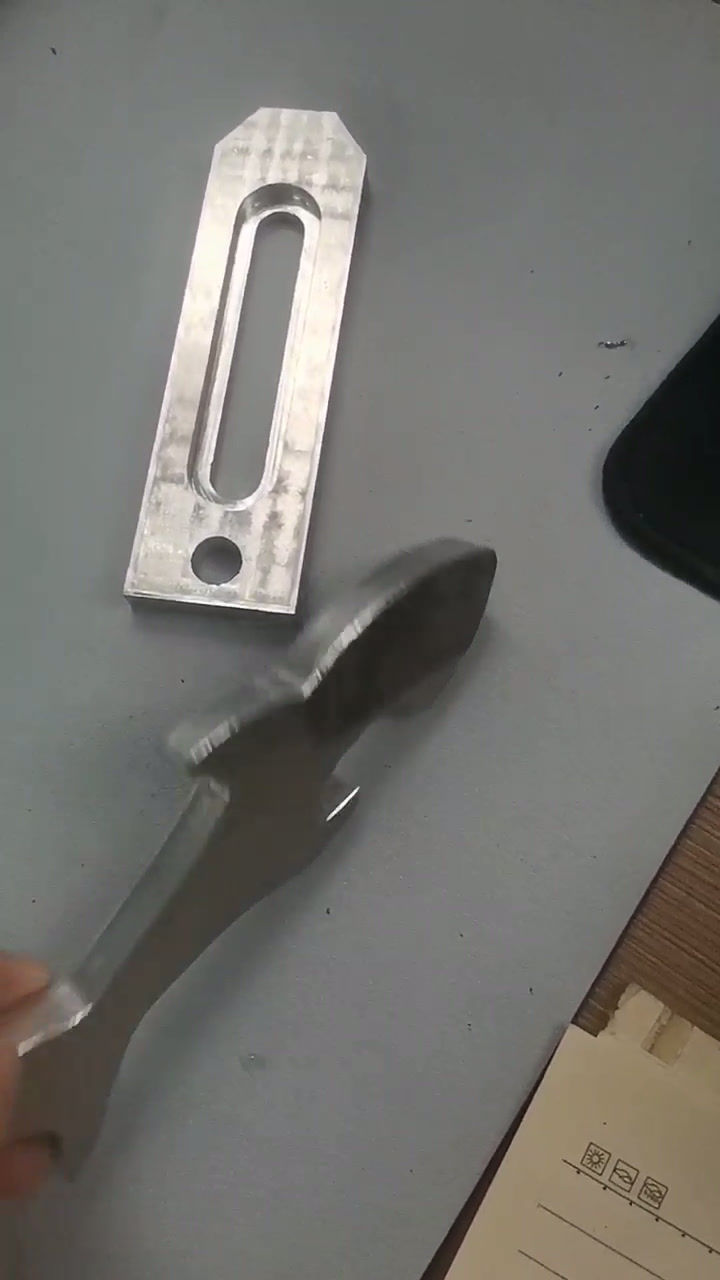

Designed for use with aluminium and nonferrous metals this machine allows the user to design and mill components for signs, component parts, novelties etc.

The machine features an active X & Z travel with the Y travel being controlled by a moving heavy duty cast iron table top. (see videos) All Axis are Ball Screws.

Including  a 600mm x 900mm x 200mm work area, a powerful 3.2kw 1ph water cooled Spindle with Industrial Chiller and a Rich Auto DSP Controller.

Details
Model      Woodworker MS6090
Working power      AC 220V，Single phase
Working area      600*900*200mm
Max.travelling speed      12000mm/min
Max.working speed      8000- 10000mm/min
Working table structure      Cast iron
Machine body      Cast iron
Transmission      Linear square 20 guide rail
                                      Motor base from Taiwan
                                       XYZ axis are all 2005 ball screw
Ancillary apparatus    Delixi
Inverter       Fuling 3.7KW
Spindle      JST 3.2KW water cooling spindle（0-24000rmp)
Cooling     CW 3000 Industrial Chiller
Driver motor      Leadshine 750w Servo motor
Supporting software      JDpaint Type3 ARTCAM UG etc.
Command code      G code ENG u00 mmg
Control system      Richauto DSP A11
Warning Light     Red - Working, Yellow - Warning, Green - Not Running
Electric auto Oil Lubrication
Auto Tool Height Setting
1 x Electric Pump for Water Tank
Levelling Feet

Option Lockable Guards around machine. (see images above) $1950

3 year Manufacturer's Warranty

Price does NOT include Delivery, Installation and Training.
Tool Pathing software Vectric V Carve recommended NOT included

Approx 800kg.
